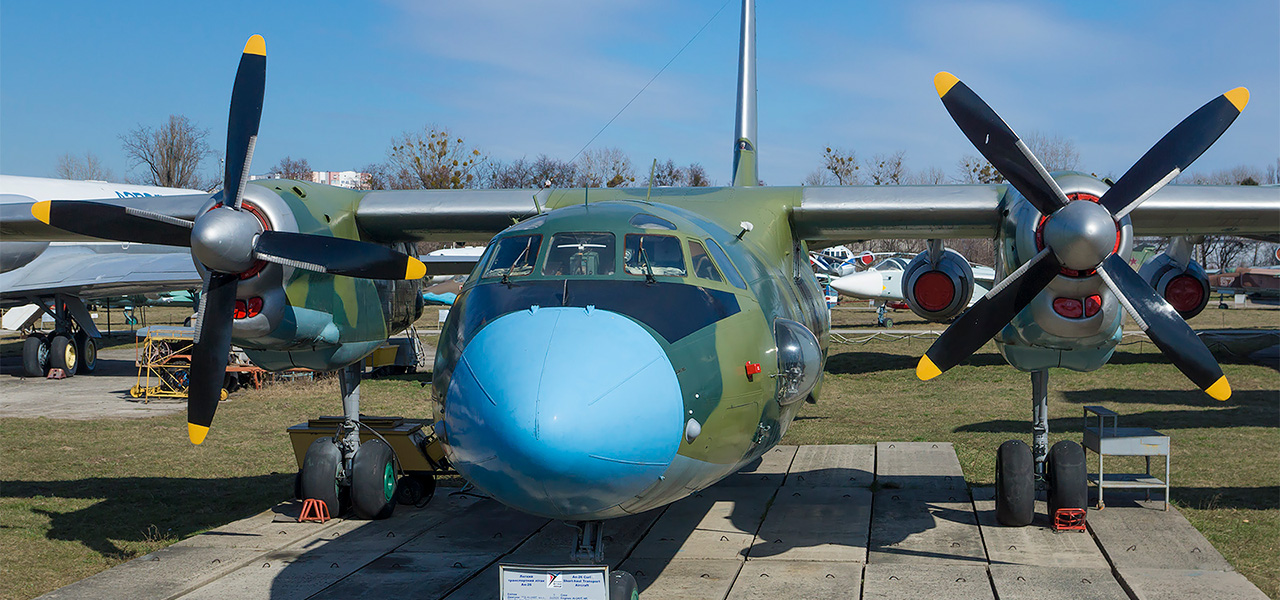

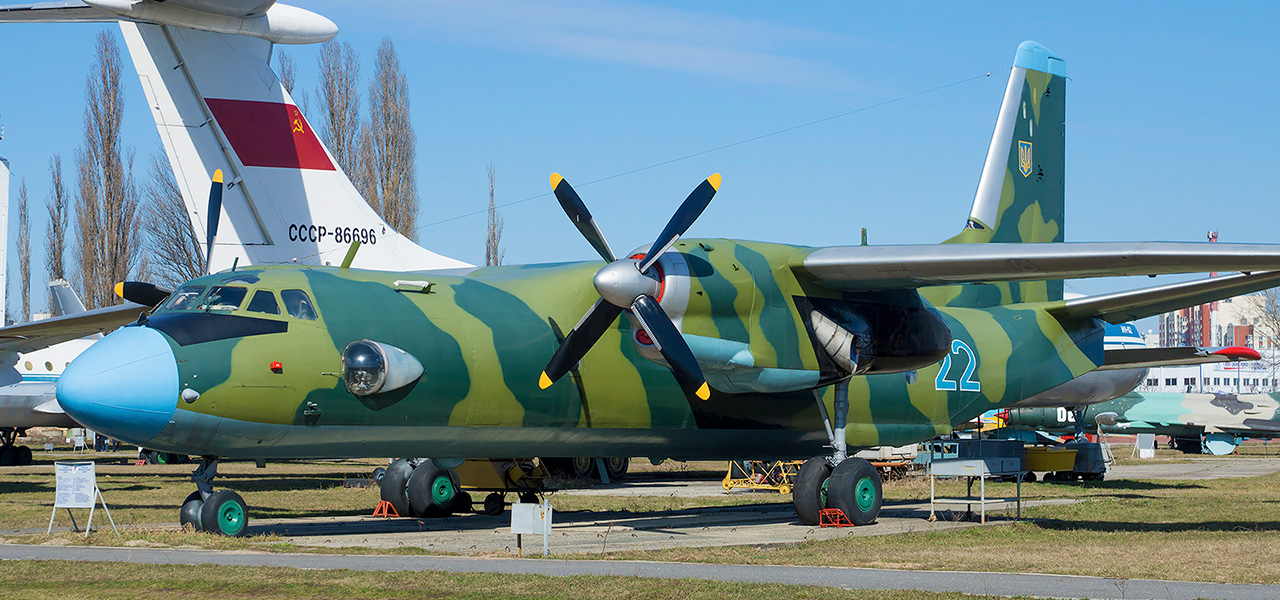

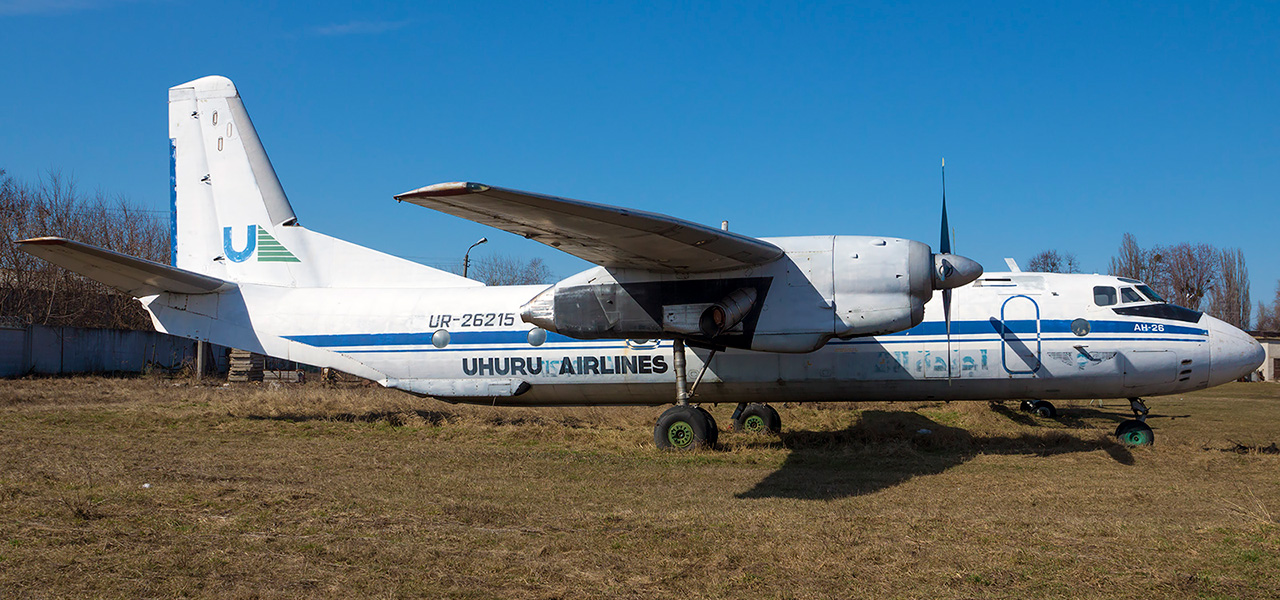

An-26
Light transport aircraftAN-26 - the most common transport aircraft in the world. It was established in 1968 based on the An-24 and produced the Kiev factory "Aviant." During the 1970-86 period was built almost 1,400 aircraft AN-26 all models, of which 420 - for export. They are still flying in 37 countries (including five NATO countries). As of early 2001 were still in operation more than 1,100 of these reliable machines.
AN-26 is able to take on up to five and a half tons of cargo (or 40 paratroopers) and deliver them to a distance of 2,500 kilometers at any time, even in difficult weather conditions. The characteristic structural features of the aircraft is a large cargo hatch with folding ramp at the rear of the fuselage through which the operations of loading or unloading (or dropping cargo and paratroopers in the air), and a third (auxiliary) turbojet engine in the right nacelle.
Mass production: 1970-86 years. Total production in 1398 aircraft An-26 all models, of which 420 - to export. In 2001 there were in operation in 1168 An-26 (37 countries)
The plane passed out of the park to the museum of transport squadrons MIA.
First flight: | May 21, 1969 |
Crew: | 5 people. |
Engines: | THD AІ-24W, 2 x 2820 hp, DSU RU-19A-300 (900 kg of thrust) |
Length: | 23.8 m |
Wingspan: | 29.2 m |
Wing Area: | 75 m2 |
Take-off weight: | Max - 24 000 kg, normal - 23 000 kg |
Maximum sales load: | 5500 kg |
Cruising speed: | 435 km / h |
Ceiling: | 7500 m |
Range: | 1000-2650 miles |
Takeoff / landing run: | 870/650 m |
